JD-V850 Vertical Machining Center
JD-V850 is a highly automated, multifunctional vertical CNC machining center that integrates milling, boring, drilling, and tapping. With a compact footprint, fast axis movement, and quick tool change capability, it delivers high efficiency and performance.
Equipped with a high-speed, high-rigidity spindle system, it handles both heavy-duty and high-speed machining, ideal for complex small-to-medium parts in ferrous and non-ferrous metals. Widely used in aerospace, automotive, energy, IT, and mold manufacturing industries.
The factory is ISO 9001 certified, with standardized SOP process control and strict quality execution to ensure long-term consistency and reliability of every machine.
Efficiency · Stability · Versatility
From control systems to structural design, from machining capabilities to safety protection, the JD-V850 brings together key advantages to support efficient and stable production.
> High Speed, High Precision, Compact Footprint：Designed for precision machining of small-diameter parts, this compact, cost-effective lathe features a small footprint, large travel range, high spindle speed, precise feed, easy operation and maintenance, and efficient chip removal.
Optional CS-axis enables contour and curved surface machining.
> High-Precision Servo Control：Full-servo drive on three axes ensures fast response and high repeatability.

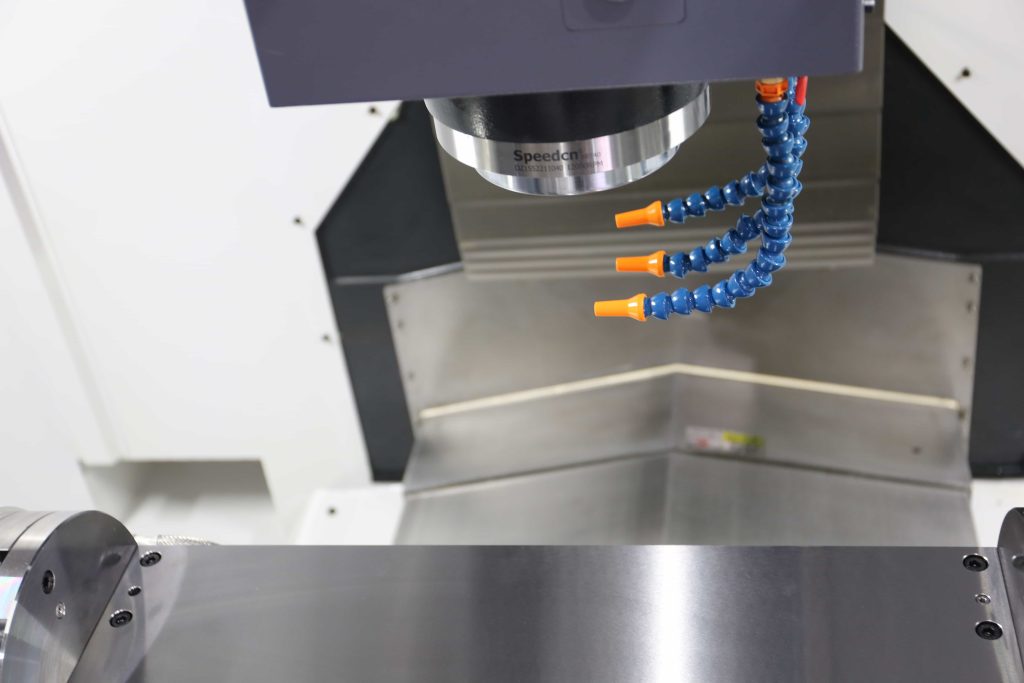

> Robust Spindle Interface：High-rigidity spindle with BT40 interface, suitable for various materials and cutting conditions.
> Optimized Travel Range：Well-balanced axis travel, ideal for small to medium-sized workpieces.
> 4th Axis Expandability：Optional 4th-axis integration allows multi-face positioning and complex contour machining.
> Fully Enclosed Safety Guarding：Standard enclosure effectively isolates chips and coolant for operator safety and a clean workspace.
Key Specifications · Precision in Control
Core parameters define machining performance, enabling fast model selection and efficient production matching.
> Table Size：1,000 × 500 mm
> Max. Table Load：500 kg
> X / Y / Z 行程：800 / 500 / 500 mm
> Spindle Taper：BT40
> Max. Spindle Speed：8,000 rpm（可选 10,000）
> Spindle Power：7.5 kW
> Rapid Traverse：36 / 36 / 30 m/min
> Tool Magazine Capacity：24 tools (Disc-type ATC)
> Tool Change Time：2.5 s (Tool-to-tool)
> CNC Controller：FANUC 0i-MF (Other options available)
> Repeatability：±0.005 mm
> Machine Weight：约 5,000 kg
> Machine Dimensions (L × W × H) ：2,900 × 2,615 × 2,620 mm
Built on Structure, Driven by Precision
From the machine base to transmission, from spindle to control system — every structural detail is engineered to ensure stability, efficiency, and high-precision machining.
> High-Rigidity One-Piece Bed：Constructed from high-grade cast iron, offering excellent structural stability, shock resistance, and deformation resistance.
> Efficient SpindleSystem：Belt-driven spindle ensures stable speed and high torque output, suitable for a wide range of cutting tasks.
> Automatic Tool Changer：Equipped with a 24-position disc-type tool magazine for fast tool changes and improved machining efficiency.
> Linear Guideways on All Axes：High-precision ball screws combined with linear guideways deliver smooth motion and accurate positioning across X, Y, and Z axes.
> Optional 4th Axis：Enables multi-face and 3D machining, increasing equipment flexibility and utilization.
> Smart CNC System Compatibility：Supports mainstream controllers including FANUC, Siemens, and Mitsubishi for user-friendly operation and integration.
Versatile Across Industries, Built to Perform
The JD-V850 is well-suited for machining structural components and precision parts across multiple industries—including mold making, automotive, hardware, and electrical equipment—meeting diverse and high-precision manufacturing requirements.
> Mold Manufacturing：Cavity plates, mold cores, inserts, and electrode components
> Automotive Components：Engine brackets, steering bases, and housing-type structural parts
> General Machining：Structural components made of aluminum, steel, and copper
> Hardware Tools：Milled surfaces, drilled and tapped metal components
> Electrical Automation Equipment：Mounting plates, connector brackets, and guide rail accessories
